Full-Arch Rehabilitation of the Maxilla and the Mandible Using a Digital Protocol and Superstructures by XGATE Dental

This clinical case is provided by Dr. Luca Laloè.
Dr. Laloè is the founder and director of three successful clinics: a practice in Naples on Corso Maria Cristina di Savoia, a clinic in Somma Vesuviana, and a center in Milan specializing exclusively in oral surgery and implantology. Over the years, he has accumulated extensive clinical experience: he has performed over 7,400 surgical extractions and placed approximately 7,000 dental implants using the most modern rehabilitation protocols.

Patient summary

The patient is 56 years old.

Her general health is good, but she has severe dental issues that affect both her masticatory function and the aesthetics of her smile.

Prior to treatment, initial diagnostics were performed:

• CBCT of both jaws, including the surrounding tissues.
• Intraoral digital scanning.

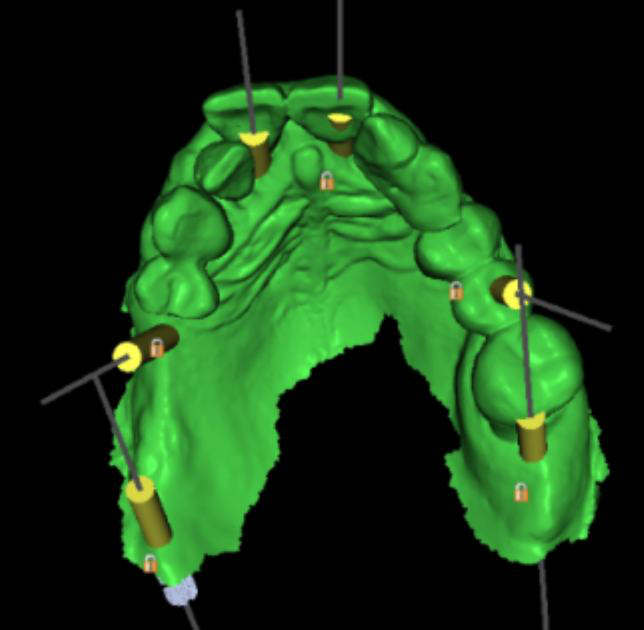

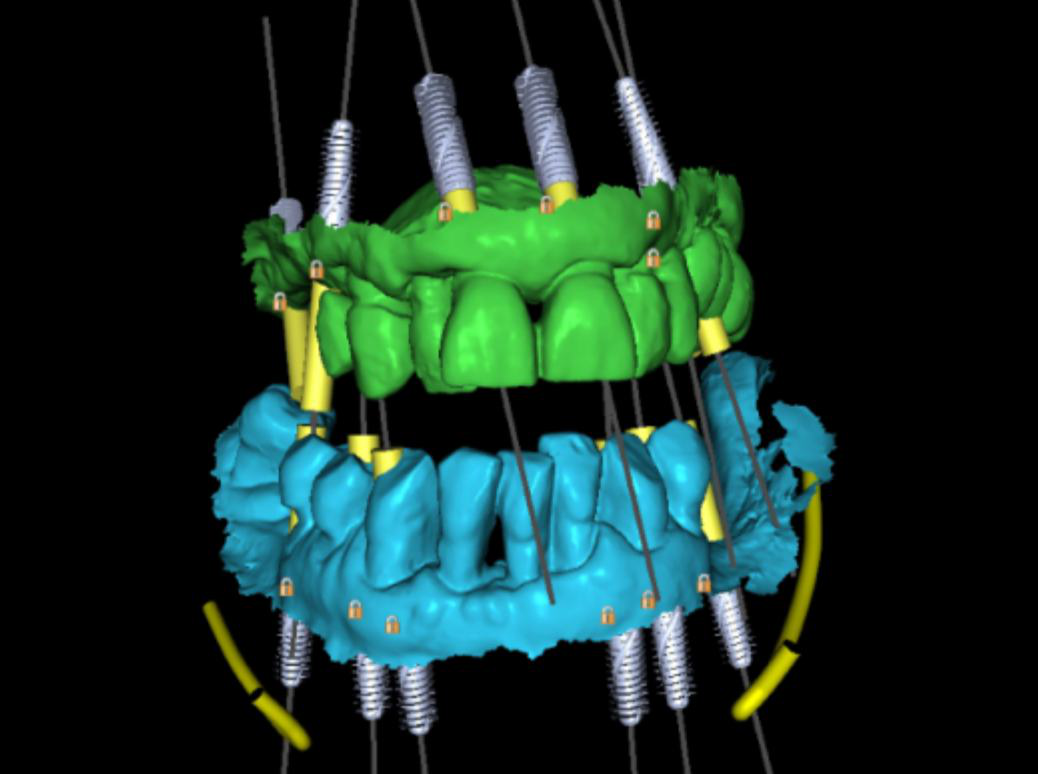

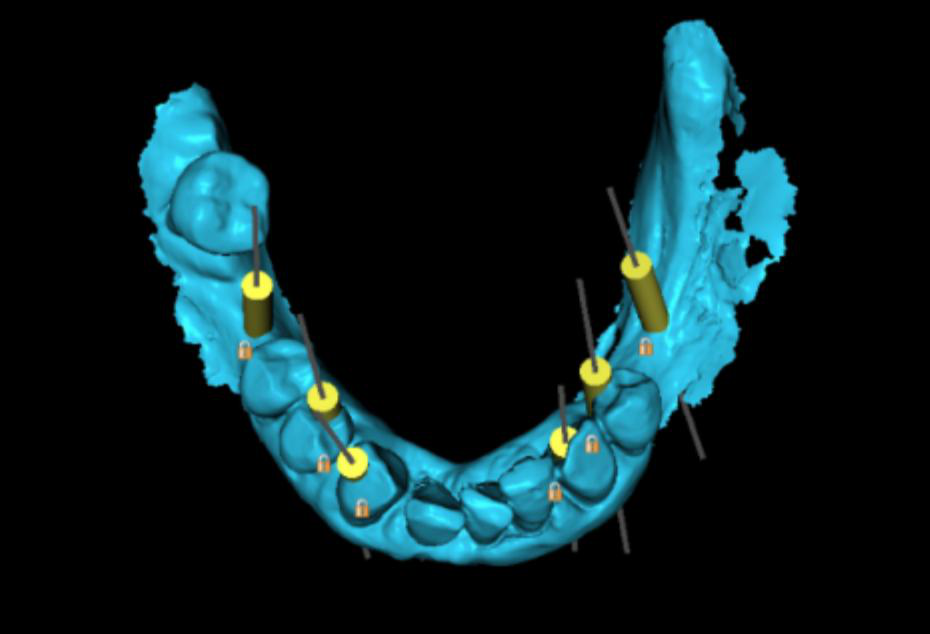

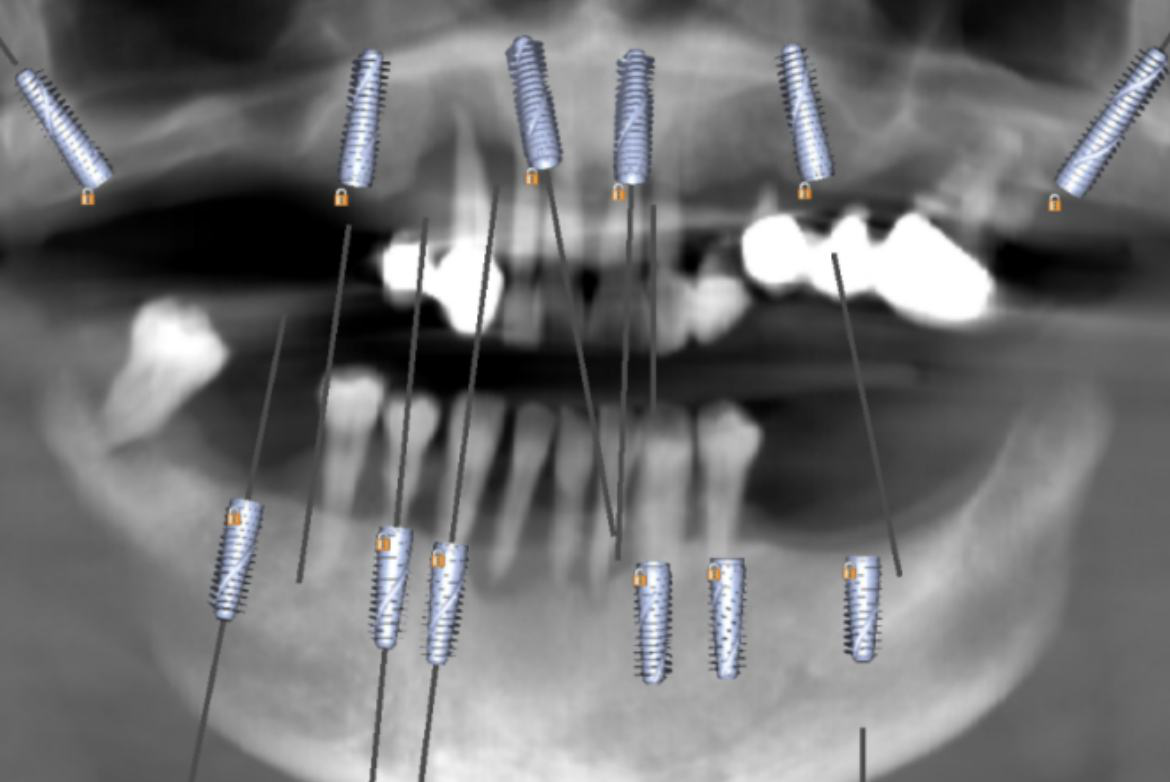

By merging the DICOM and STL files, a consolidated 3D model was obtained for the digital planning of the implant positions in specialized software (see illustrations below).

Following a comprehensive analysis of the patient’s clinical picture, a personalized treatment plan was developed: full-arch prosthetic rehabilitation of the maxilla and mandible using the full-arch 6 protocol.

Digital planning

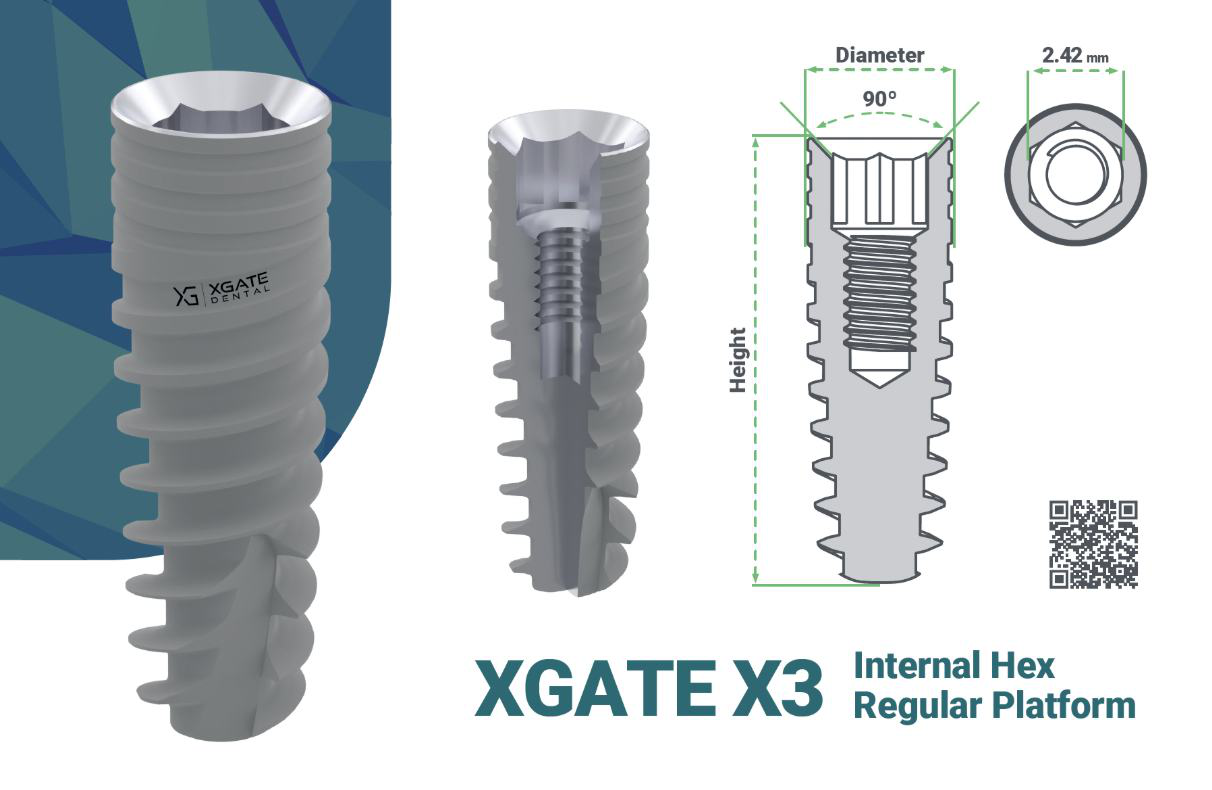

At this stage, the implant dimensions and positions are determined. In this clinical case, the following positions and sizes were selected for XGATE Dental X3 series implants with an internal hex interface:

Surgical protocol

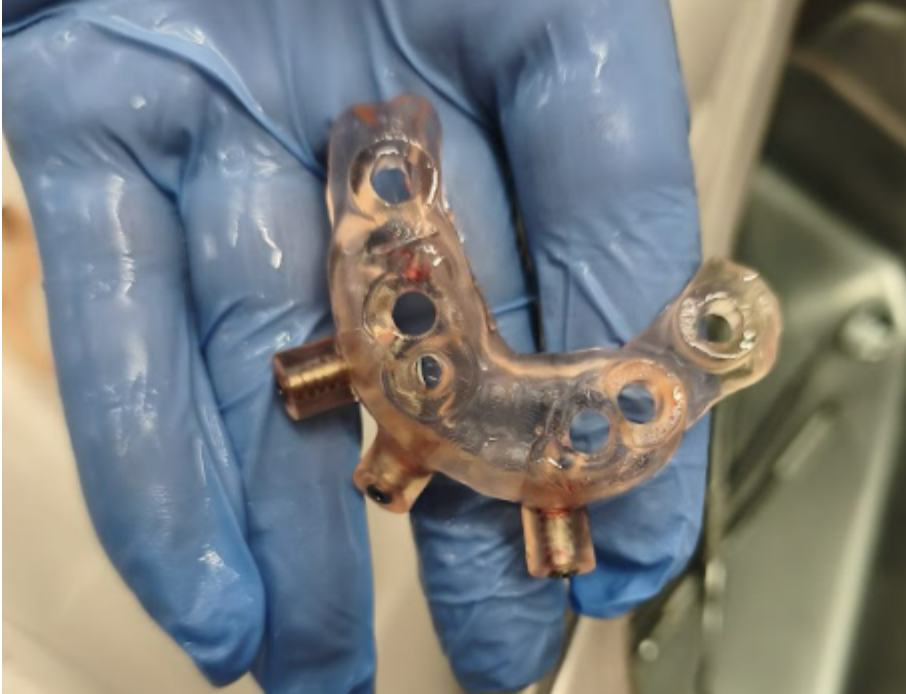

Using the same software package, a surgical guide is designed and manufactured, which allows for the placement of the implants precisely in accordance with the approved plan.

The surgical phase of the treatment then proceeds in the following sequence:

• Extraction of the remaining teeth.
• Placement of the surgical guide.
• Performing tissue punching at the implant placement sites.
• Preparation of the implant osteotomies according to the parameters determined during the planning phase.
• Placement of the implants through the guide sleeves of the surgical guide.
• Verification of primary implant stability and a control panoramic radiograph.

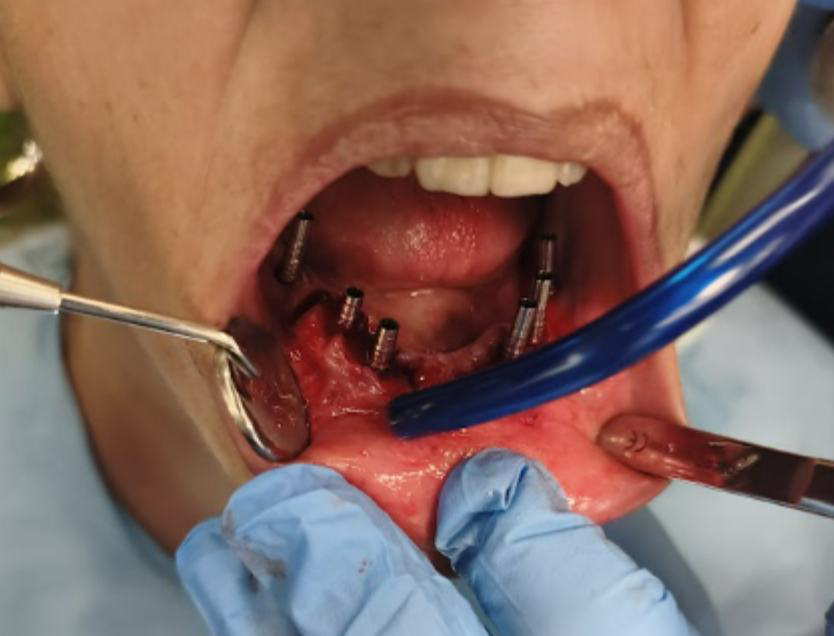

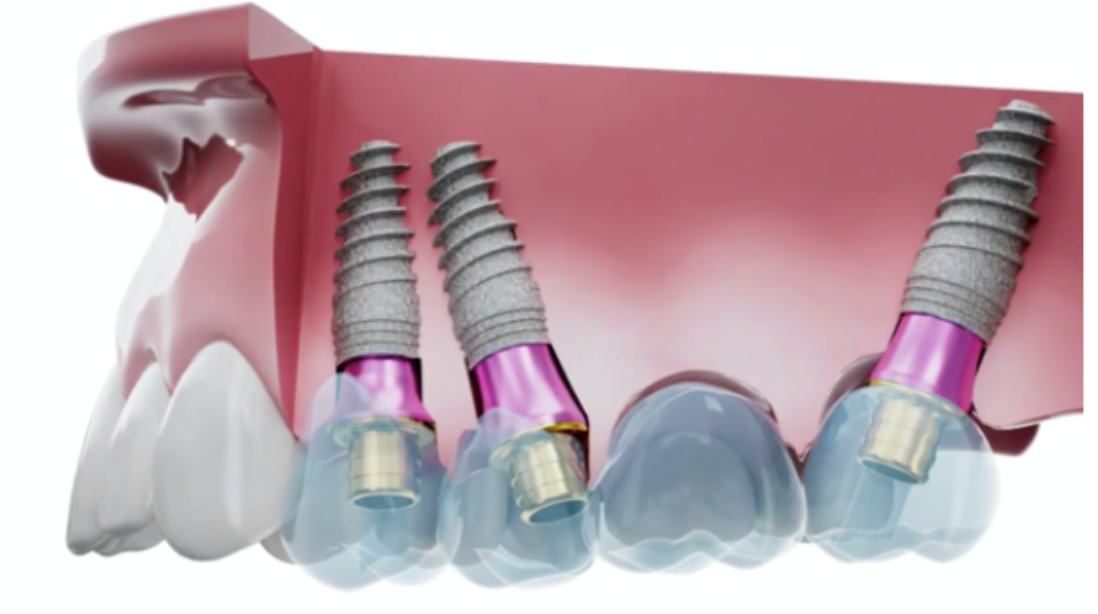

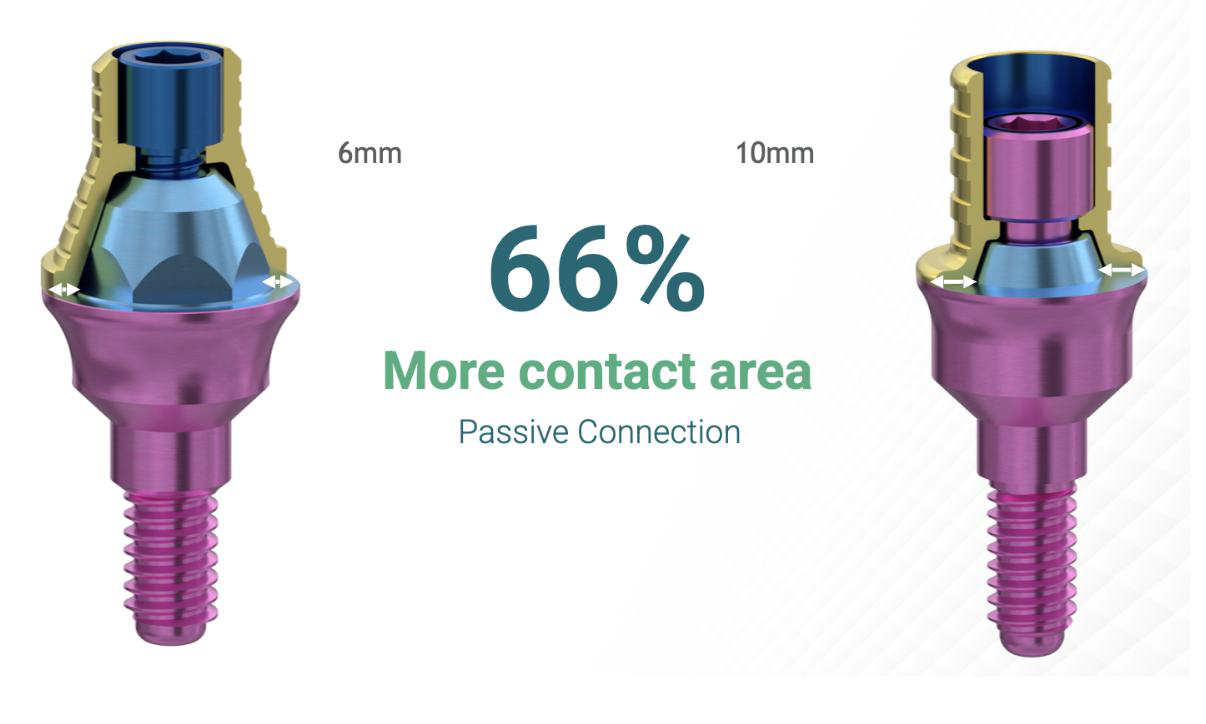

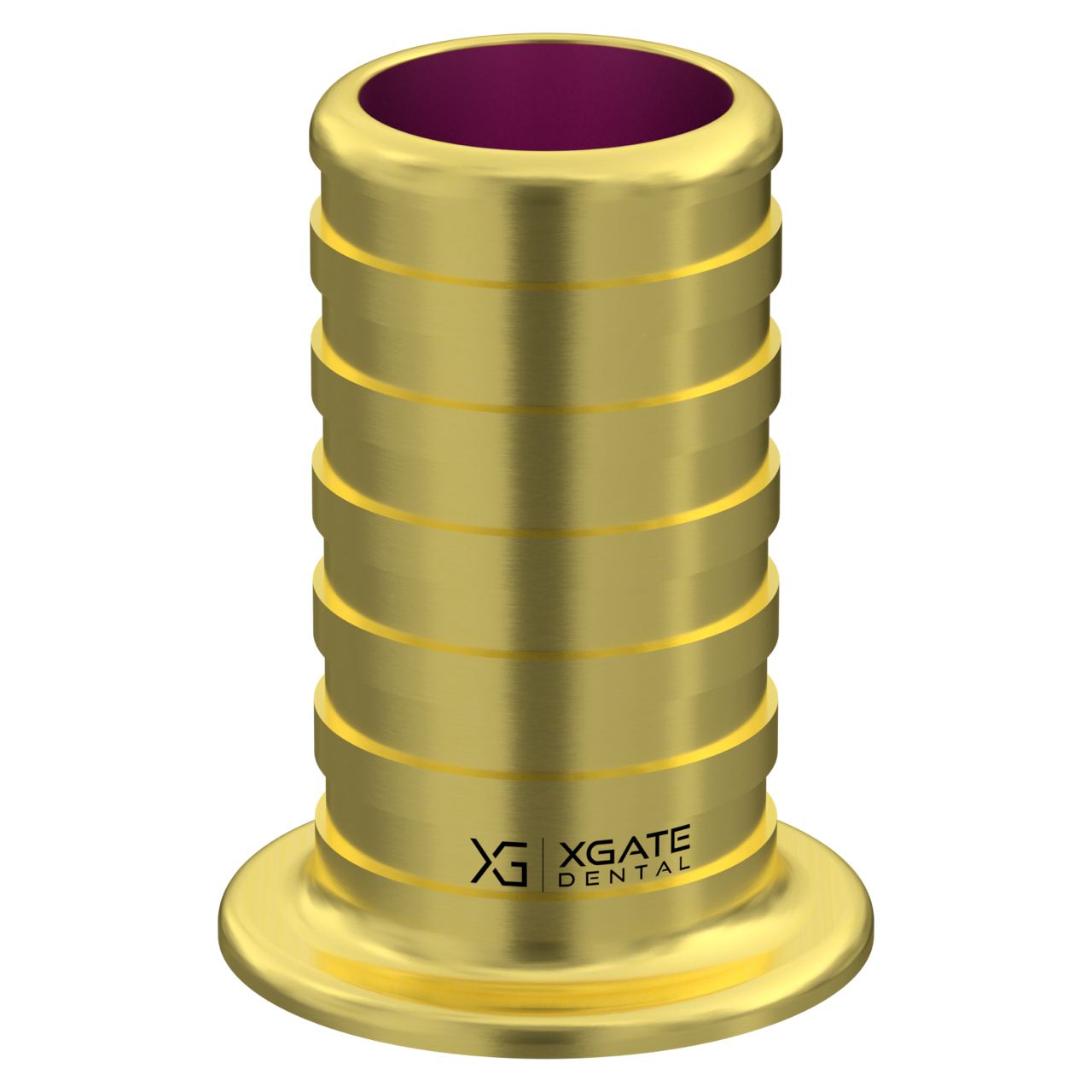

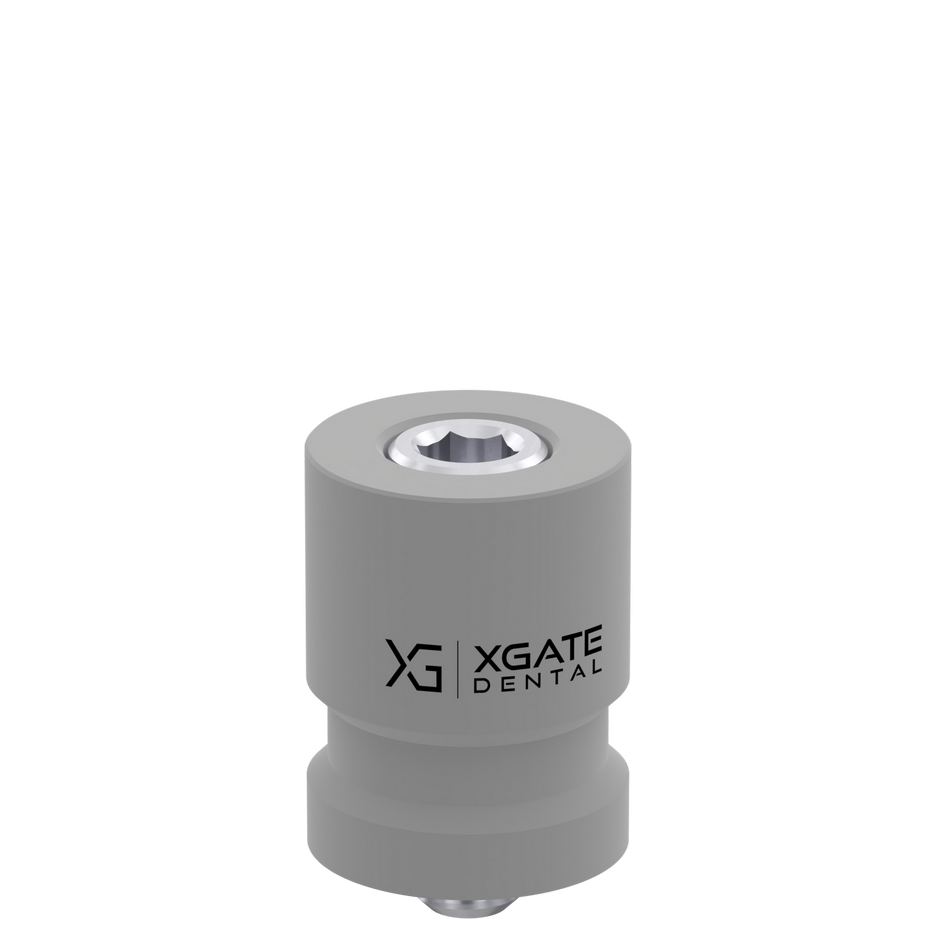

• Placement of V-Type Multi-Unit Abutments. V-Type Multi-Units provide a passive fit and feature an ultra-low profile, which increases the mechanical strength of the prosthesis by increasing the wall thickness at the prosthesis-cylinder interface. In this case, Multi-Units with transgingival heights of 2 mm and 3 mm were used, together with Multi-Unit level scan bodies for V-Type and 6 mm XGATE prosthetic sleeves.

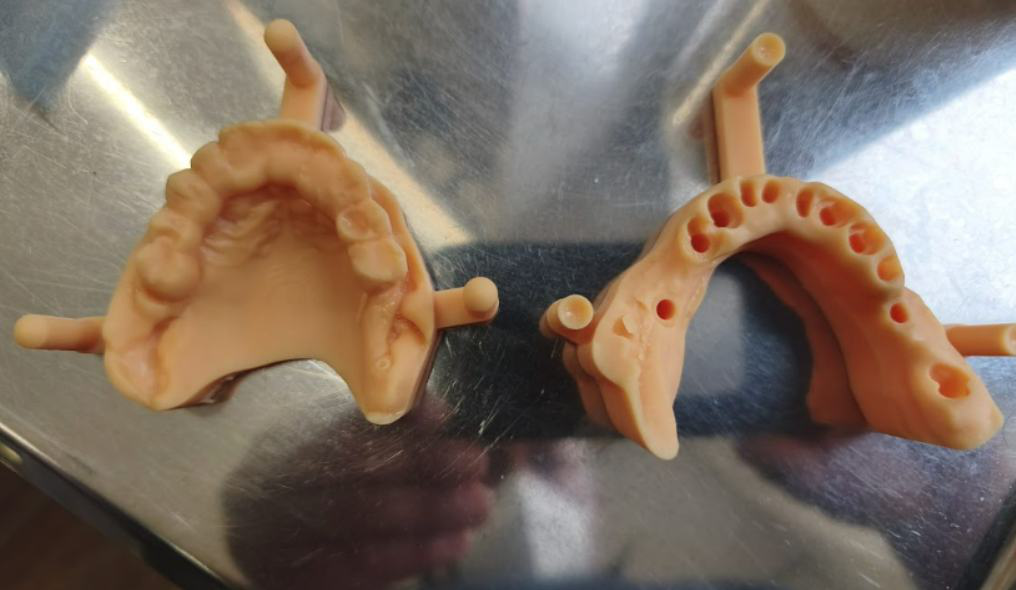

• Delivery of the screw-retained provisional prosthesis.
• Occlusal check.

Key stages of the surgery

The photos below show the key stages of the surgery.

Result

Upon completion of the surgical phase, during the same visit, the patient was fitted with a fixed, screw-retained provisional prosthesis supported by the implants, which she wore throughout the entire osseointegration period.

The photos above primarily illustrate the workflow for the mandible; all procedures for the maxilla were performed in a similar manner.

Thus, the patient came to the clinic with an extremely unsatisfactory condition of her dentition, and two hours later left with implants placed using guided surgery technology and a full-arch fixed prosthesis supported by the implants.

Thanks to the use of a surgical guide, the intervention was minimally invasive: there were no incisions or flap elevations, and no sutures were required.

Moreover, this treatment has had a significant psychological impact: it gives the patient a new life. For a long time, she had been unable to masticate food properly and, most importantly, was deprived of the joy of smiling freely.

Interested in achieving similar clinical outcomes? For technical specifications or ordering information regarding XGATE products, please reach out to our team or our representatives in your country.
