This clinical case, presented by Dr. Sergey Goykhman, is notable not only for combining implants and abutments from different manufacturers but also for demonstrating the importance of standardization and precision in the fabrication of implants and superstructures.
Dr. Sergey Goykhman
Specialization:
Oral Surgery, Orthopedics, Restorative Dentistry, Soft Tissue Management
Place of work:
Israel, Netanya, Obol Dental Center
The key objective of this case is to illustrate the creation of aesthetically elegant and high-quality restorations using low-profile V-Type abutments, which offer enhanced versatility even in cases with limited space.

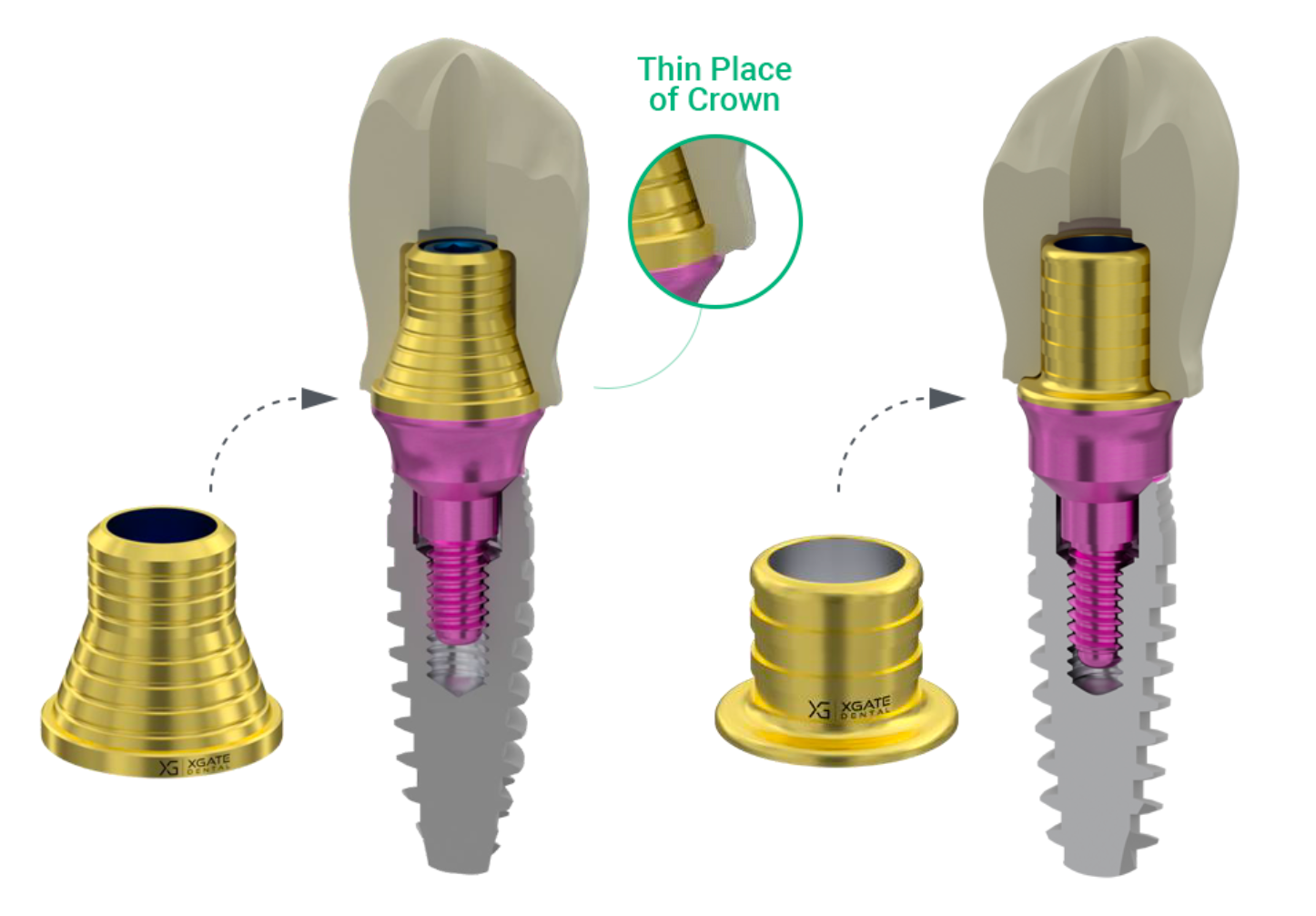

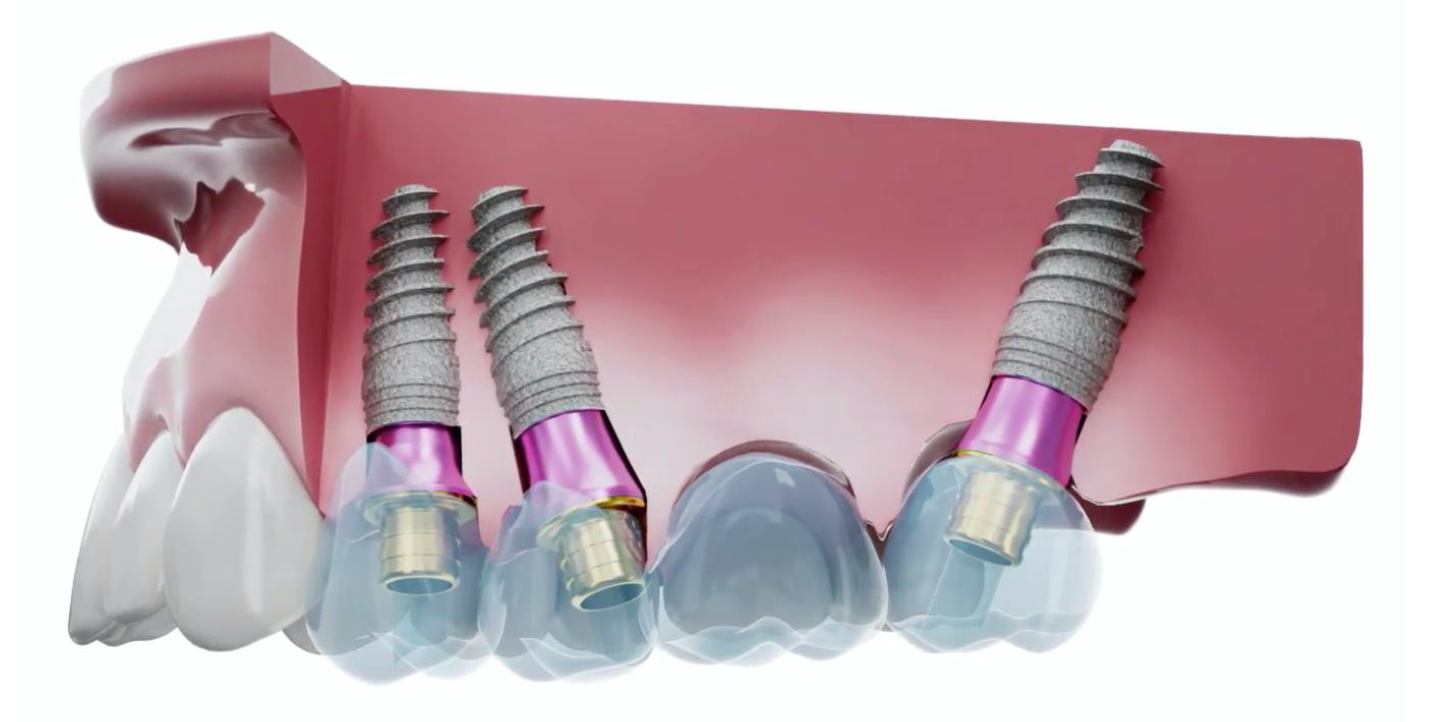

Small cone provides more space for the restoration material
Patient Summary

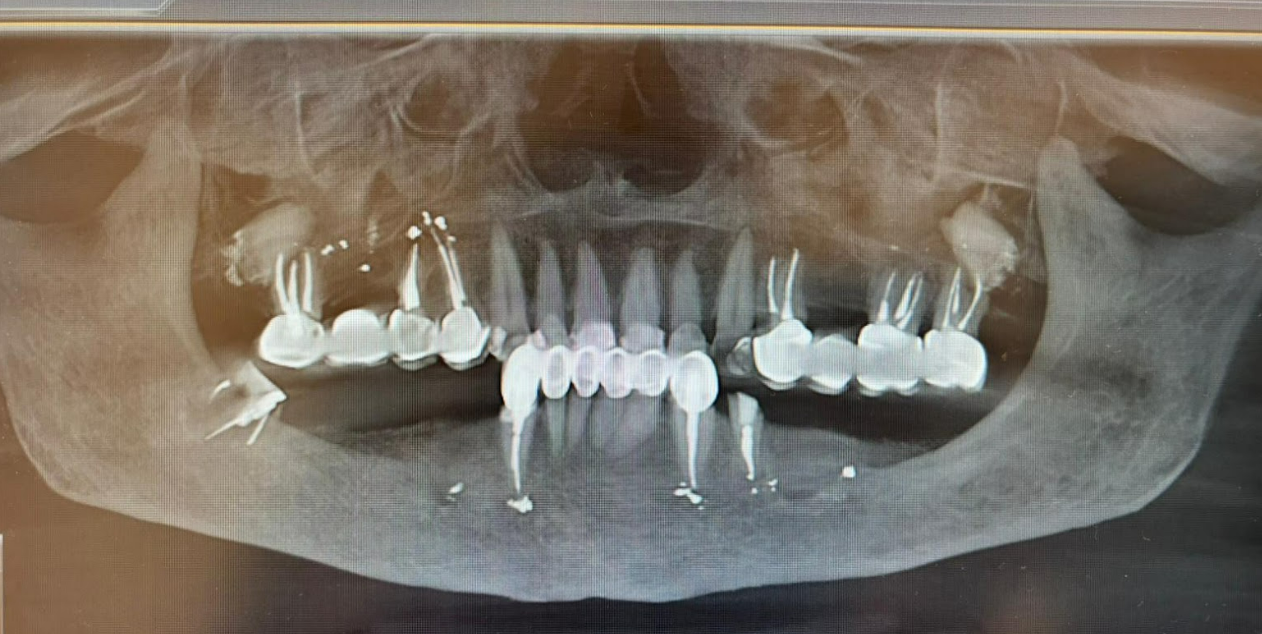

An 80-year-old female patient presented with complaints about poor quality of life due to an old clasp-retained removable denture on the mandible that required replacement. She also reported issues with the remaining compromised teeth (#34 and #48). Her general health was satisfactory, and no contraindications or limitations for implant surgery were identified. The preoperative condition is clearly visible in the provided radiographs.
Treatment Plan and Execution
During the diagnostic phase, radiographs and an intraoral scan of the patient’s mandible were obtained. Based on the digital scan data, a surgical guide was fabricated for implant placement.
In the first stage, hopeless teeth #34 and #48 were extracted. Immediate implant placement was performed: six implants were placed, three in the third quadrant and three in the fourth quadrant. A surgical guide was used to ensure precise implant positioning. The implant-abutment interface utilized a standard Internal Hex connection.

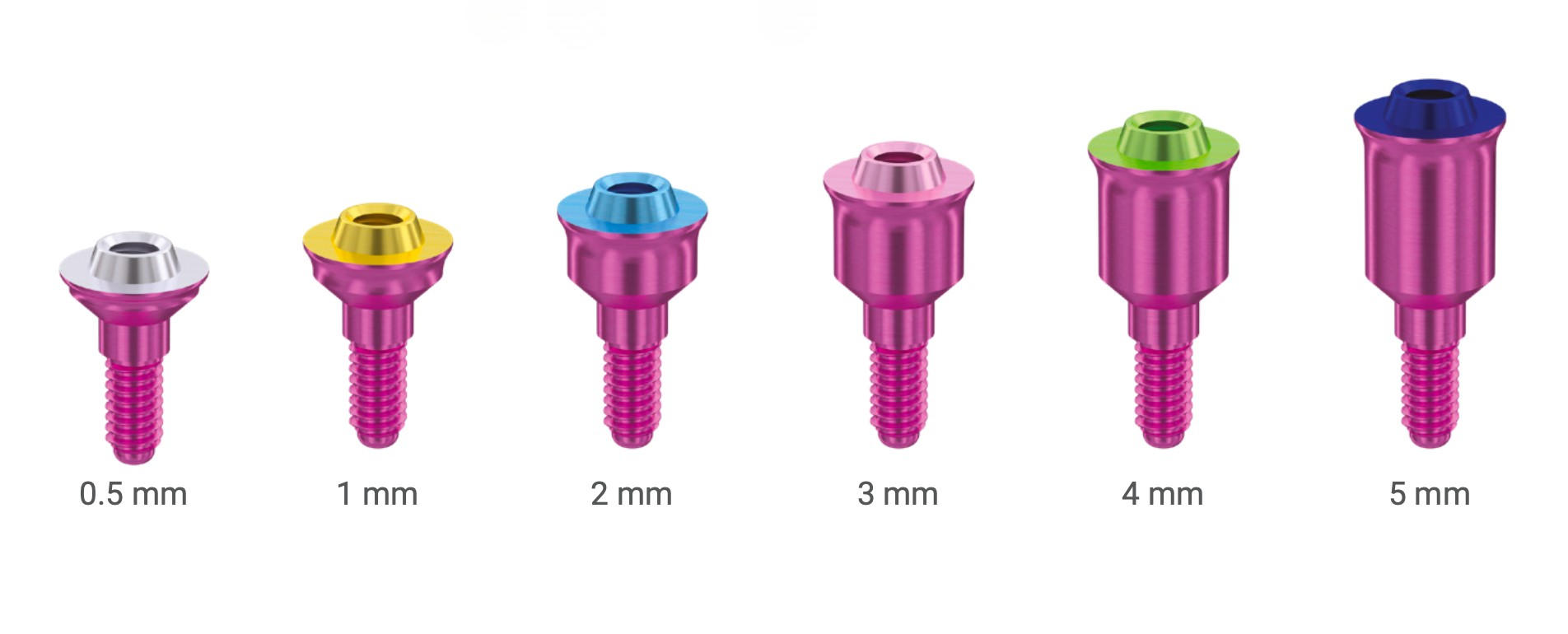

Immediately following implant placement, V-Type Multi-Unit Abutments were placed, and healing caps were secured onto them. The abutment cuff height was selected based on mucosal thickness and alveolar ridge anatomy. XGATE, a company specializing in innovative prosthetic solutions, incorporates digital height markings on V-Type abutments (see illustration below).
V-Type MUA
The image below, taken after soft tissue healing, clearly displays the placed V-Type Multi-Unit Abutments (MUA V-Type) and their respective positions:
| Tooth Position (FDI) | MUA Type & Gingival Height |
|---|---|
| #34 | MUA – 3 mm |
| #35 | MUA – 2 mm |
| #37 | MUA – 1 mm |
| #44 | MUA – 1 mm |
| #45 | MUA – 2 mm |
| #47 | MUA – 2 mm |
| Total: 6 Positions | 6× MUA |

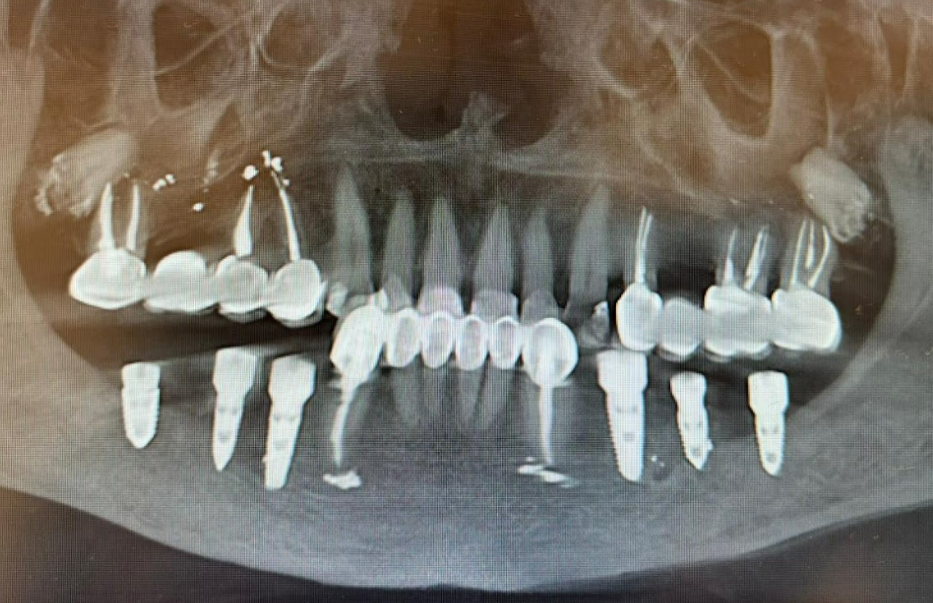

During the soft tissue healing and osseointegration period, the patient adhered to a soft diet. Upon complete healing and re-evaluation of all clinical parameters, zirconium dioxide bridges were fabricated and delivered.
The outcome is satisfactory from both functional and aesthetic perspectives.

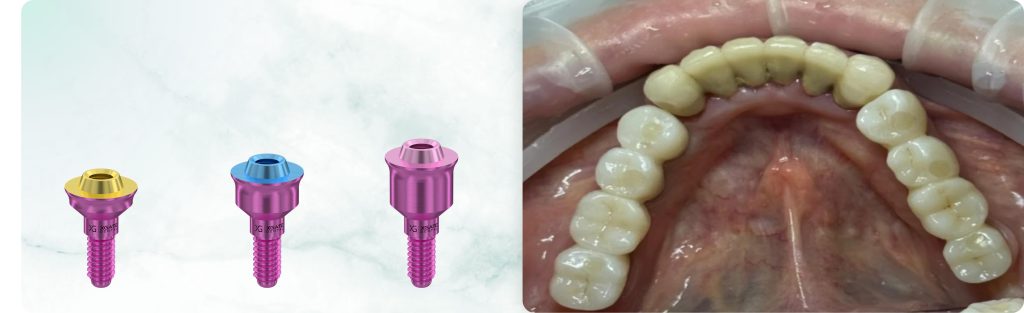

XGATE Products: Mandibular Rehabilitation Case
The products selected for this screw-retained restoration include V-Type multi-unit abutments with various gingival heights for optimal soft tissue management.
