Temporary bridge “ALTALENA” (Italian. Swing) on titanium grounds

The patient is 74 years old.
The incisors of the lower jaw are to be removed, the teeth 31, 32, 41 and 42 movable. There is a contraindication to immediate implantation and load, there are foreseeable problems with temporary prosthetics. On the 36th and 46th teeth, single crowns with screw fixation.



Crowns installed on implatates 20 years ago

The first stage unscrewed the crowns from the 36th and 46th, we will return them after the end of treatment.

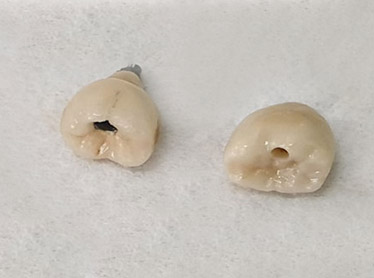

Crowns removed from previously installed implants

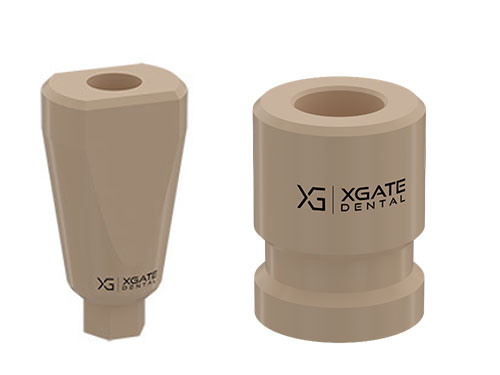

The second stage is to install a scan of markers on the patient’s previously installed implants and scan (can take the impression with transfers) the jaw to make a temporary bridge with support on 2 implants, taking into account the removal of the lower incisors.

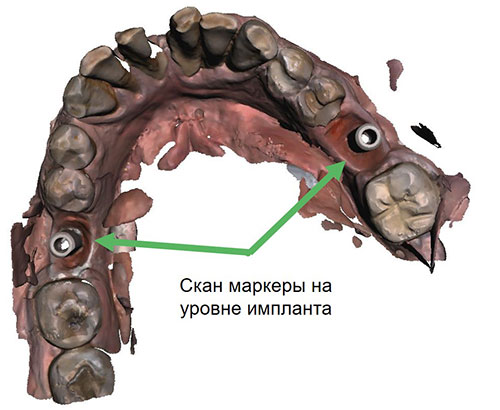

Scan markers at the implant level fitted on 36 and 46m teeth
blank

The third stage,paste:

Ti-bases “Monolith”

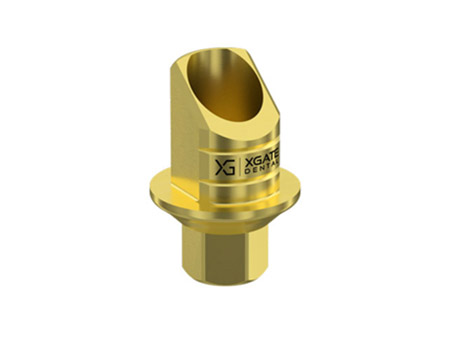

Ti-base by XGate Dental
blank

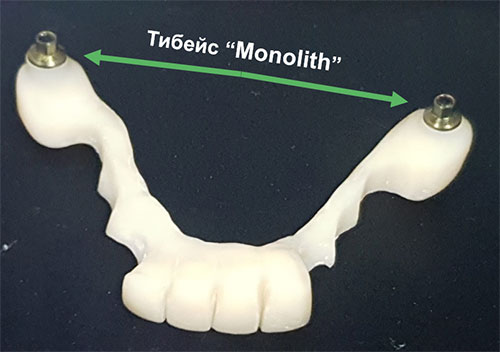

Tibes pasted in the supporting crowns.

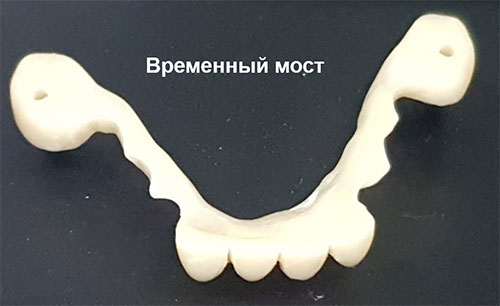

This is what the design looks like after removing 4 incisors with a temporary bridge installed.

blank

After implants are installed in the 31st and 42nd, the gum height is 3 mm and 2 mm.

A picture of the mouth with places of installation of multi-uniting units on new implants

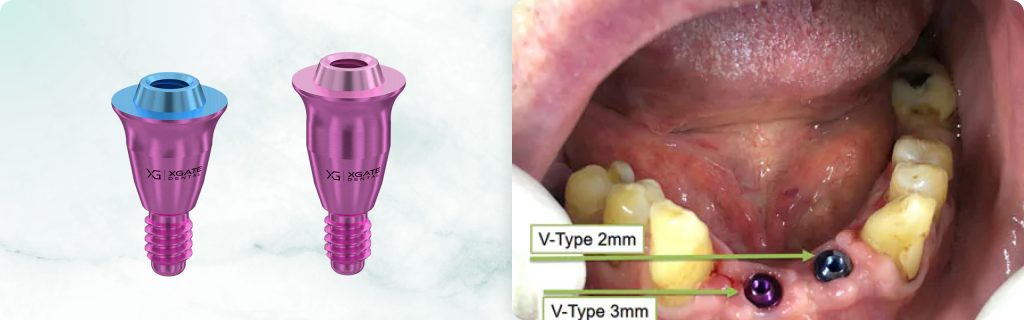

The fourth stage,set the appropriate multi-units. The color of the XGate multi-unit cone indicates height.

Multi-unit V-type

V-Type 3 and 2 mm multi-unit

A photo of the lower jaw with multi-unit installed

This is the condition of the gums after osteointegration with installed molders on multi-units.

Image of the lower jaw showing the condition of the gums after osteointegration

V-Type Gum Shaper

The fifth stage,to make a permanent bridge remove the healing caps and install scan markers on implants and multi-unit abutments. Scan (or take the impressiont with transfers).

A photo of the lower jaw with scan markers
blank

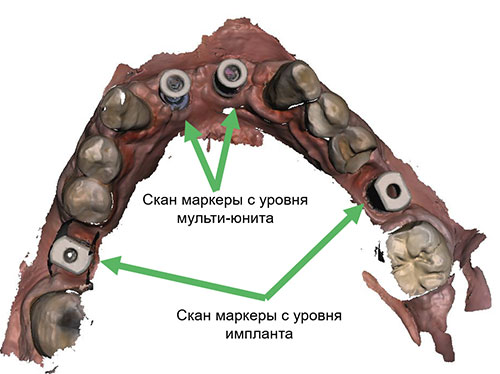

Scan of the lower jaw with scan markers

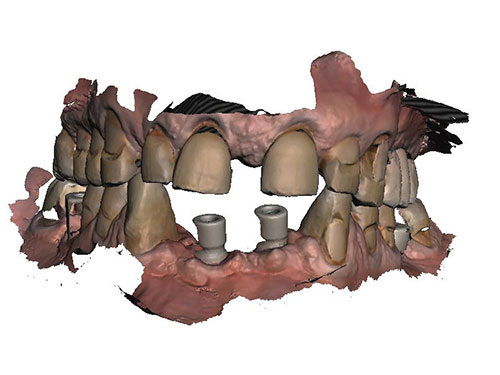

Bite scan

Bite

This is a new temporary bridge on incisors with glued sleeves.

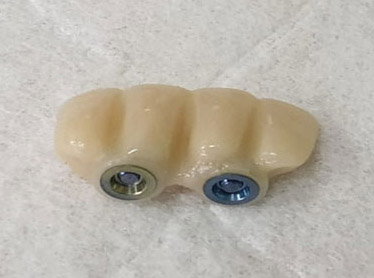

Photo of a time bridge with sleeves glued

V-Type multi-unit sleeve

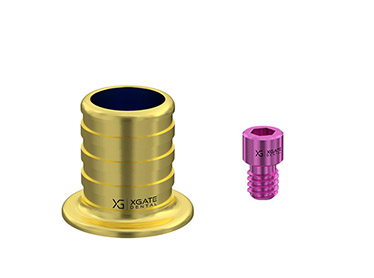

Sleeve with screw on the Multy unit V-type

The sixth stage,the old crowns of molars we returned to the original position as before the beginning of treatment.

Photo of the bridge on the right
Frontal photo of the bridge installed
Photo of the bridge on the left

Now we can start a permanent restoration.
