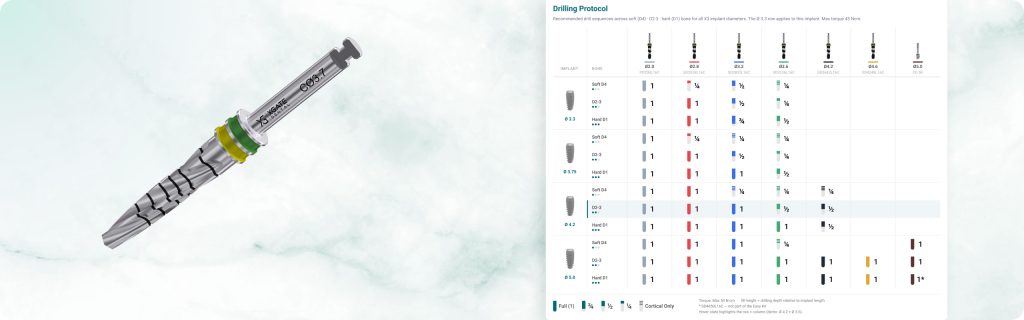

The XGate Dental implant drilling protocol demonstrates a precision-engineered sequential approach that ensures optimal osteotomy preparation while preserving bone integrity throughout the surgical procedure. Beginning with comprehensive site assessment and bone density evaluation, the technique progresses through six meticulously planned drilling steps: ø1.9mm pilot drill to establish proper implant axis and depth, followed by sequential expansions to ø2.0mm, ø2.8mm, ø3.2mm, and ø3.65mm diameters, with each step performed using controlled pressure at 800-1200 RPM and copious saline irrigation to prevent overheating and maintain bone vitality. Following completion of the final osteotomy, the XGate dental implant is carefully inserted using a two-stage torque protocol—initial placement at 50 Ncm for proper seating, then final torque application at 15 Ncm to achieve optimal primary stability without over-compression. The procedure concludes with healing cap installation to protect the implant platform and guide soft tissue healing during the 3-6 month osseointegration period, while post-surgical care includes ice application, chlorhexidine rinse protocols, soft diet recommendations, and regular follow-up appointments to monitor healing progression and ensure successful implant integration.

Disclaimer: Any medical or scientific information provided in connection with the content presented here makes no claim to completeness and the topicality, accuracy and balance of such information provided is not guaranteed. The information provided by XGate Dental Ltd. does not constitute medical advice or recommendation and is in no way a substitute for professional advice from a physician, dentist or other healthcare professional and must not be used as a basis for diagnosis or for selecting, starting, changing or stopping medical treatment.

Physicians, dentists and other healthcare professionals are solely responsible for the individual medical assessment of each case and for their medical decisions, selection and application of diagnostic methods, medical protocols, treatments and products.

XGate Dental Ltd. does not accept any liability for any inconvenience or damage resulting from the use of the content and information presented here. Products or treatments shown may not be available in all countries and different information may apply in different countries. For country-specific information please refer to our customer service or a distributor or partner of XGate Dental Ltd. in your region.
