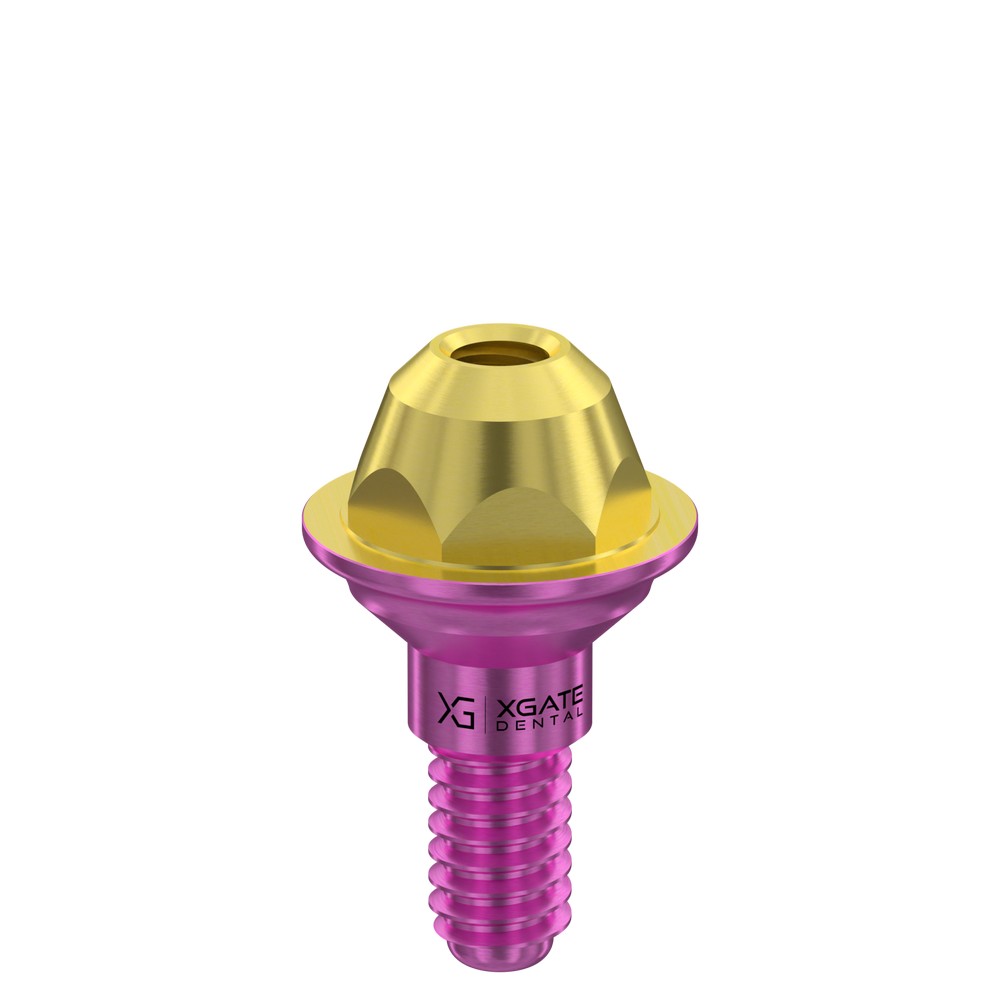

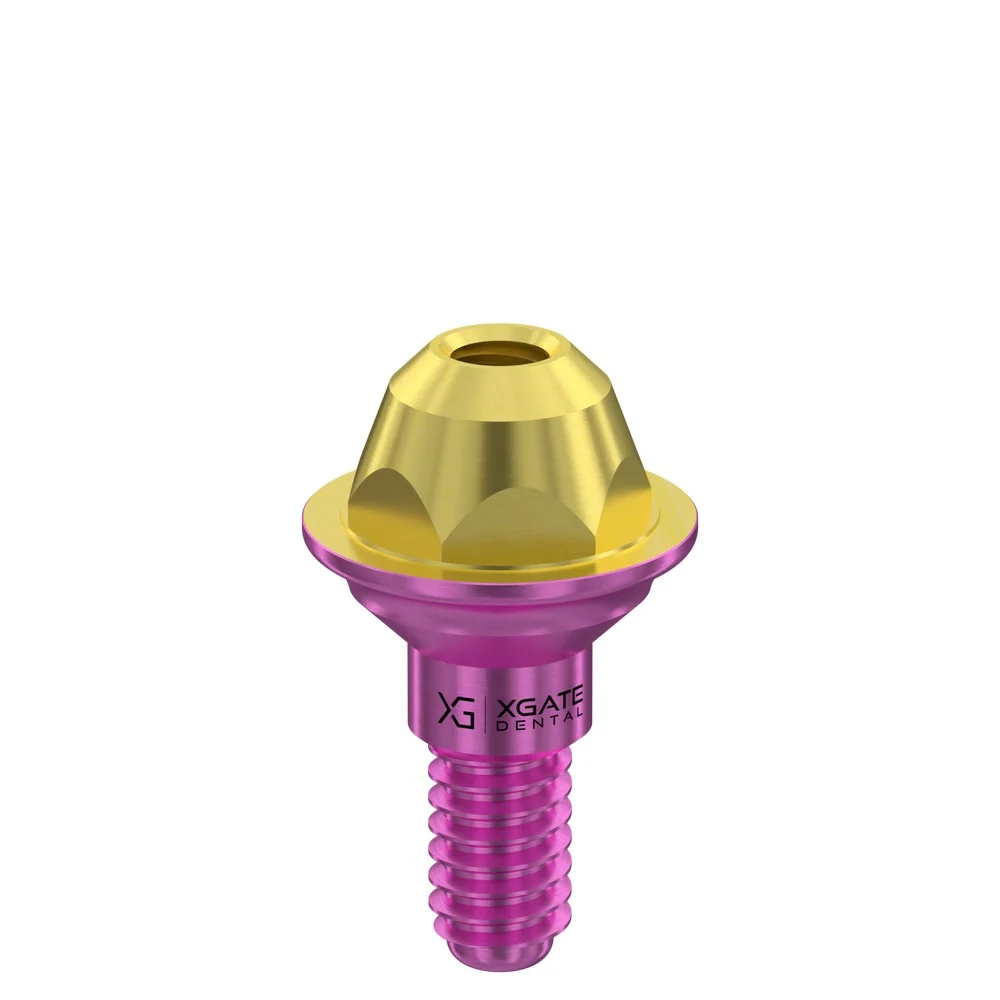

Straight Multi-Unit Abutment D-Type GH 1 mm for Internal Hex RP

Name: Straight Multi-Unit Abutment D-Type GH 1 mm for Internal Hex RP - XGate Dental Group GmbH
SKU: 5101.1001

Internal Hex · D-Type · GH 1 mm · REF 5101.1001

Component MUA

MUA type D-Type

Angle 0° (straight)

GH 1 mm

Connection Internal Hex

Platform Regular

Screw driver Key for straight MUA D-type

Torque 30 Ncm

Add to List Find a Distributor

Technical specifications

REF: 5101.1001
Angle: 0° (straight)
Component: MUA
Connection: Internal Hex
GH: 1 mm
MUA type: D-Type
Platform: Regular
Screw driver: Key for straight MUA D-type
Torque: 30 Ncm

Systems shown for this SKU

29 listed systems

XGATE platform

direct catalog line

Internal Hex

Internal Hex systems

28 published systems

AB Dental® Adin® Alfa Gate® Alpha Bio® Alpha Dent® Axelmed® BEGO® Biohorizons® Blue Sky Bio® Cortex® Dentegris® Ditron® Edison Medical® Implant Direct® iRes® Isomed® MIS® Noris Medical® Paltop® Ritter Implants® SGS Dental Implants® Spiral Tech® Stern Gold® Surgikor Implant® TRI Dental Implants AG® Uniqa Dental™ XGATE Dental Zimmer Biomet®

Third-party trademarks belong to their respective owners and are referenced only to identify potential compatibility. Compatibility must be assessed individually by the treating dentist.

Case Studies

Documented clinical cases featuring Straight Multi-Unit Abutment D-Type GH 1 mm for Internal Hex RP.

Using a 45° Angled Abutment on the Mandible for a Full-Arch Restoration

Apr 02, 2026

Using a 45° Angled Abutment on the Mandible for a Full-Arch Restoration

CAD/CAM Dental Implants Implant Prosthetics Inspect this Case

Full-Mouth Rehabilitation. Screw-retained MUA by XGATE

Oct 29, 2025

Full-Mouth Rehabilitation. Screw-retained MUA by XGATE

CAD/CAM Dental Implants Implant Prosthetics Inspect this Case

Full-Arch Restoration of Maxillary and Mandibular Arches with Mandibular Tooth Extraction: Screw-Retention on V-type and D-type Multi-Unit Abutments by XGate Dental

Jul 30, 2025

Full-Arch Restoration of Maxillary and Mandibular Arches with Mandibular Tooth Extraction: Screw-Retention on V-type and D-type Multi-Unit Abutments by XGate Dental

CAD/CAM Dental Implants Implant Prosthetics Inspect this Case

Total Maxillary Rehabilitation: Fixation of a Zirconia Prosthesis on V-Type and D-Type Multi-Unit Abutments

May 08, 2026

Total Maxillary Rehabilitation: Fixation of a Zirconia Prosthesis on V-Type and D-Type Multi-Unit Abutments

CAD/CAM Dental Implants Implant Prosthetics Inspect this Case

View all cases
