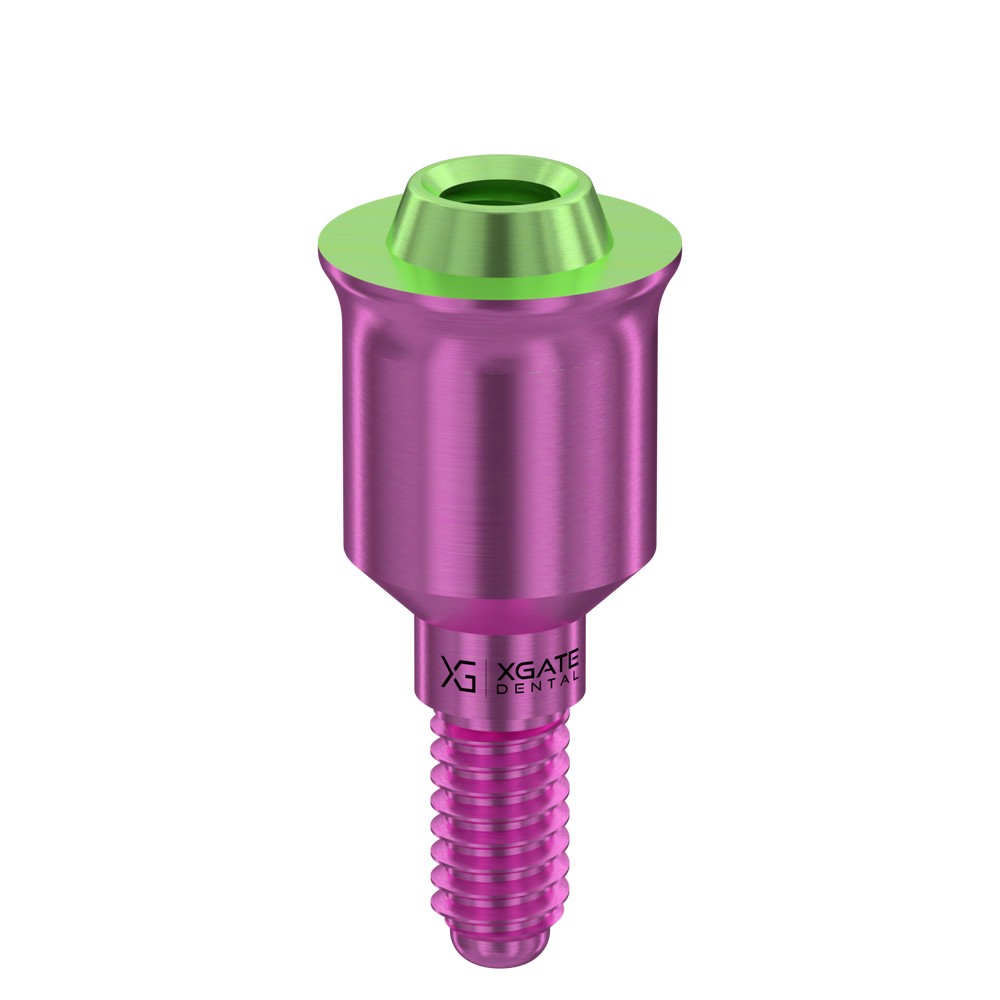

Straight Multi-Unit Abutment V-Type GH 4 mm for Internal Hex RP

Name: Straight Multi-Unit Abutment V-Type GH 4 mm for Internal Hex RP - XGate Dental Group GmbH
SKU: 5201.1004

Internal Hex · V-Type · GH 4 mm · REF 5201.1004

Component MUA

MUA type V-Type

Angle 0° (straight)

GH 4 mm

Connection Internal Hex

Platform Regular

Screw driver Hex 1.25 mm

Torque 30 Ncm

Add to List Find a Distributor

IFU Dental Abutments System XGATEPDF · 558.1 KB XG Drilling ProtocolPDF · 1.4 MB

Straight Multi-Unit Abutment V-Type GH 0.5 mm for Internal Hex RP

Technical specifications

REF: 5201.1004
Angle: 0° (straight)
Component: MUA
Connection: Internal Hex
GH: 4 mm
MUA type: V-Type
Platform: Regular
Screw driver: Hex 1.25 mm
Torque: 30 Ncm

Systems shown for this SKU

29 listed systems

XGATE platform

direct catalog line

Internal Hex

Internal Hex systems

28 published systems

AB Dental® Adin® Alfa Gate® Alpha Bio® Alpha Dent® Axelmed® BEGO® Biohorizons® Blue Sky Bio® Cortex® Dentegris® Ditron® Edison Medical® Implant Direct® iRes® Isomed® MIS® Noris Medical® Paltop® Ritter Implants® SGS Dental Implants® Spiral Tech® Stern Gold® Surgikor Implant® TRI Dental Implants AG® Uniqa Dental™ XGATE Dental Zimmer Biomet®

Third-party trademarks belong to their respective owners and are referenced only to identify potential compatibility. Compatibility must be assessed individually by the treating dentist.
